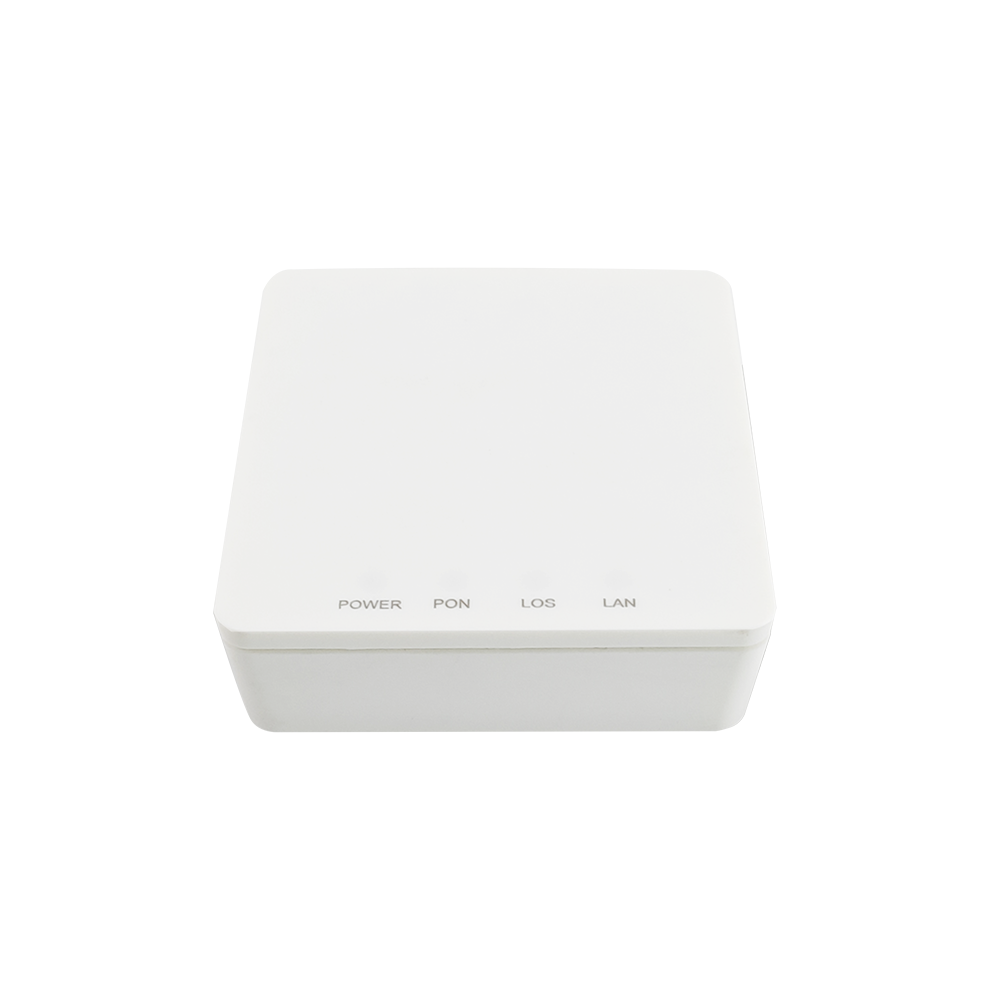

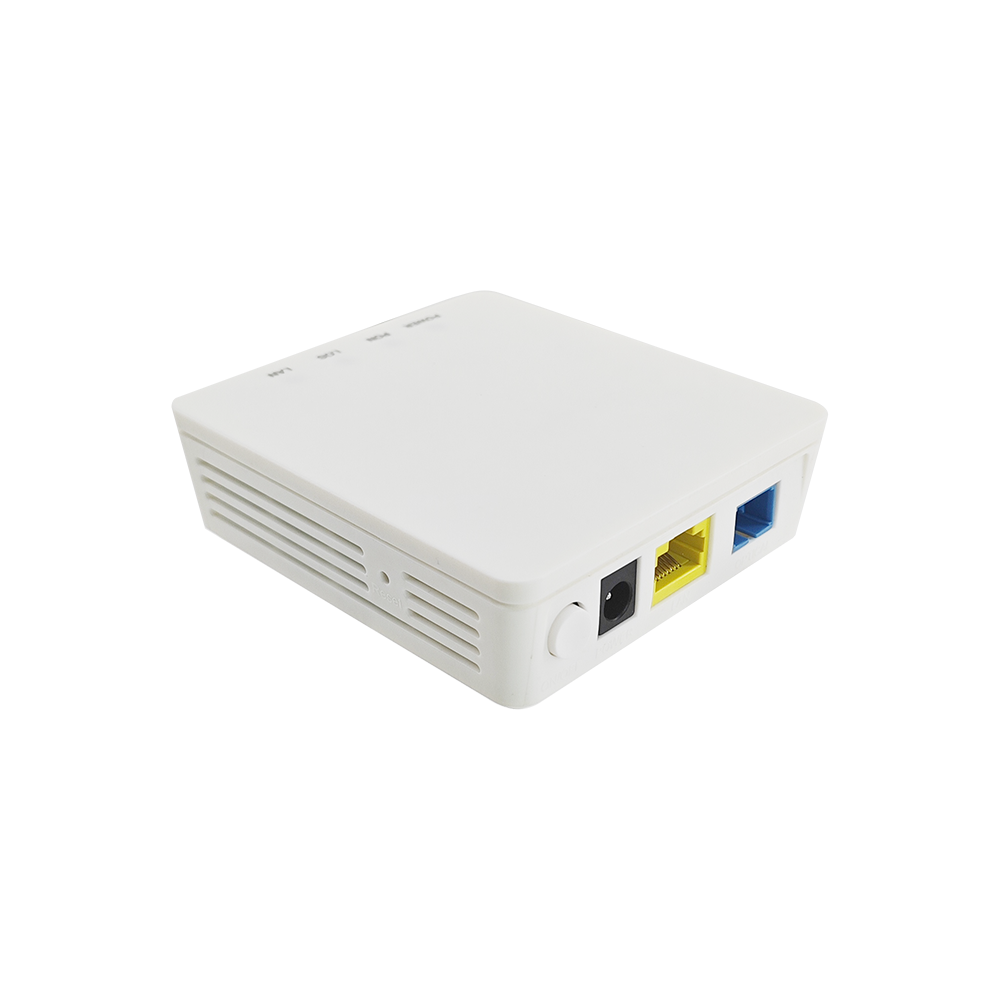

【About Product】XPON ONU(UT-XP6104) is designed and manufactured by Shenzhen UT-King Technology Co.,Ltd, a next-generation Gigabit Passive Optical Network terminal, ideal for Fiber to The Home solution. It’s an incredibly robust device allowing users to access high-speed internet connections via its XPON port and share it with a Gigabit Ethernet port. With the transmission rates of up to 2.488Gbps, one XPON port and one Gigabit Ethernet port, It provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.
|
Model
|
Configuration
|
Fiber interface
|
||||
|
PON
|
LAN
|
Telephone
|
Wifi
|
CATV
|
||
|
XP6104
|
1
|
1GE
|
/
|
internal
|
/
|
SC UPC
|
|
Remarks
|
Power plug:EU,AU,AM,UK etc
|
|||||
|
Noted: with English manual
|
||||||
|
Optional: 1GE XPON ONU
|
||||||
|
XPON Standards
|
ITU-T G.984.x and IEEE802.3X
|
|

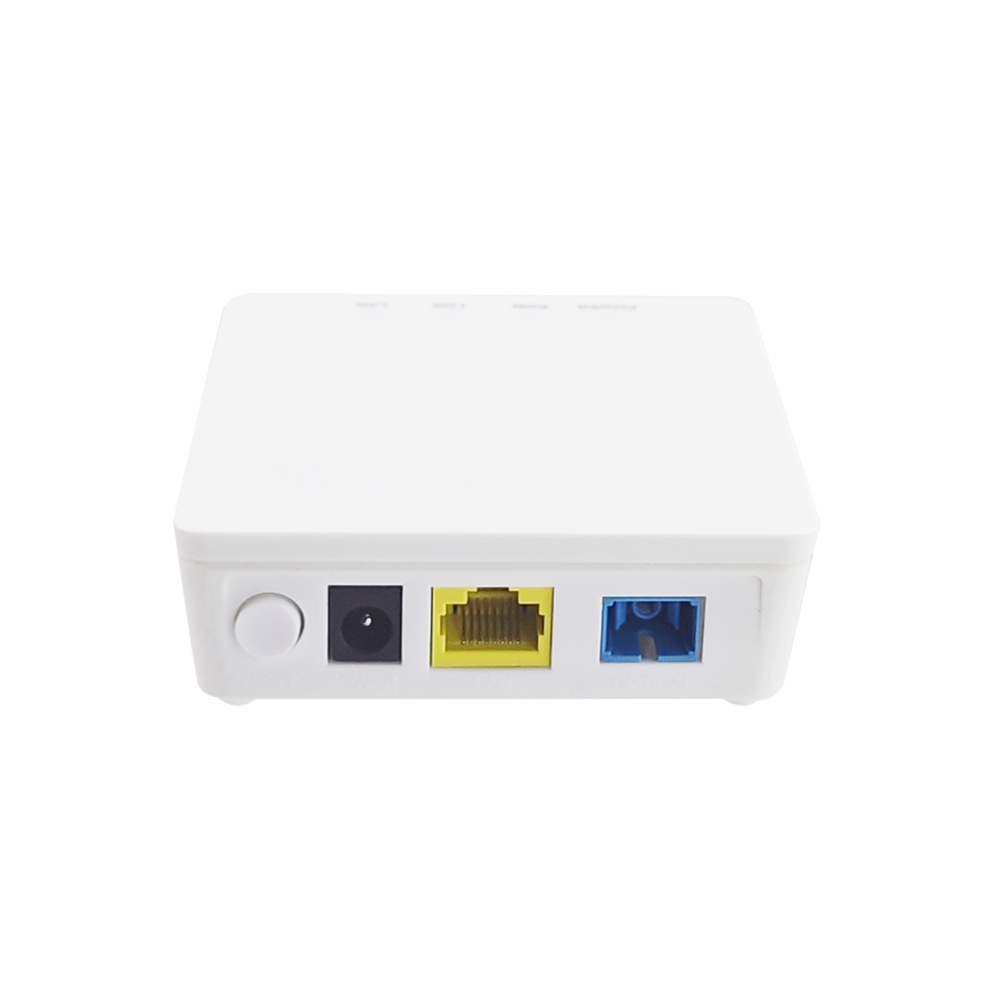

Interface
|
1 10/100/1000Mbps RJ45 Ports
1 SC/UPC Port or 1 SC/APC Port |
|
Chipset
|
Realtek, RTL9601D+RTL8290B
|
|
Data Rates & Wavelength
|
Upstream:1.244Gbps, 1310nm
Downstream:2.488Gbps, 1490nm |
|
Distance
|
0~ 20Km Max
|
|

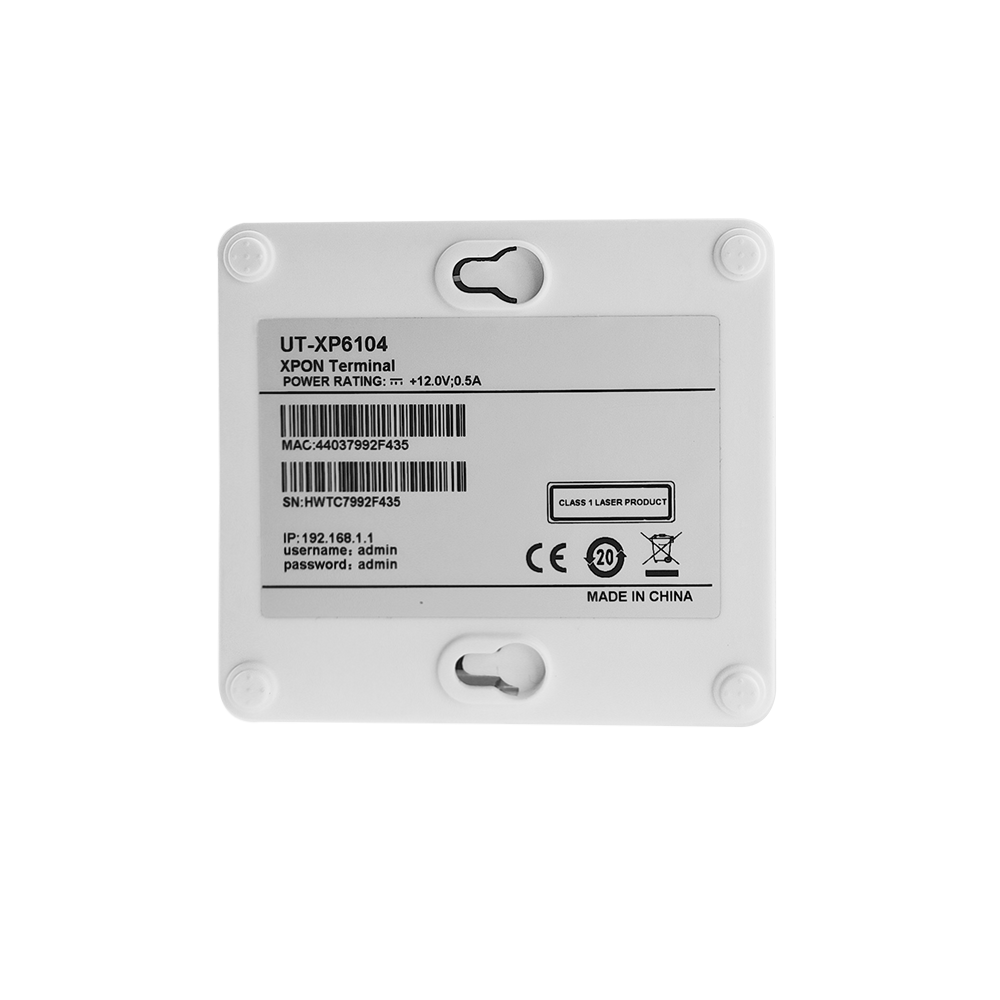

External Power Supply
|
DC 12V/0.5A
|
|
Environmental Requirements
|
Working temperature: 0°C～40°C
Storage temperature: -40°C～70°C Relative humidity: 10%～90%, non-condensing |
|
Quality of Service
|
Service Flow Classification based on VLAN
Schedule rules Support SP/WRR Upstream Priority Label Support 802.1D User Priority Rate Limit and Traffic shaping Congestion Control Support Tail-Drop |
|
Advanced Features
|
Upstream and Downstream FEC
Dynamic Bandwidth Allocation(DBA) support NSR/SR Up to 7 T-CONTs and 4095 GEM Ports Optical power detection, Dying Gasp Terminal Silent mechanism 802.3az EEE Energy Conservation |
|
VLAN
|
802.1Q tag VLAN
VLAN transparent mode/VLAN translation mode/VLAN trunk mode Authentication based on SN and Password VLAN Auto Detect |
|
Security
|
AES Encryption ；Packet Filter based on VLAN
|
|
Management
|
Managed by Web, OMCI or OAM and Telnet,
Specified the management IP, Reset to Factory default by Reset button or Web UI, Real-time statistics, Optical Diagnostic |
|
IGMP
|
IGMP v2/v3；IGMP Snooping/Proxy
|
|
Model
|
Configuration
|
Fiber interface
|
||||
|
PON
|
LAN
|
Telephone
|
Wifi
|
CATV
|
||
|
XP6104
|
1
|
1GE
|
/
|
internal
|
/
|
SC UPC
|
|
Remarks
|
Power plug:EU,AU,AM,UK etc
|
|||||
|
Noted: with English manual
|
||||||
|
Optional: 1GE XPON ONU
|
||||||
|
XPON Standards
|
ITU-T G.984.x and IEEE802.3X
|
|
Interface
|
1 10/100/1000Mbps RJ45 Ports
1 SC/UPC Port or 1 SC/APC Port |
|
Chipset
|
Realtek, RTL9601D+RTL8290B
|
|
Data Rates & Wavelength
|
Upstream:1.244Gbps, 1310nm
Downstream:2.488Gbps, 1490nm |
|
Distance
|
0~ 20Km Max
|
|
External Power Supply
|
DC 12V/0.5A
|
|
Environmental Requirements
|
Working temperature: 0°C～40°C
Storage temperature: -40°C～70°C Relative humidity: 10%～90%, non-condensing |
|
Quality of Service
|
Service Flow Classification based on VLAN
Schedule rules Support SP/WRR Upstream Priority Label Support 802.1D User Priority Rate Limit and Traffic shaping Congestion Control Support Tail-Drop |
|
Advanced Features
|
Upstream and Downstream FEC
Dynamic Bandwidth Allocation(DBA) support NSR/SR Up to 7 T-CONTs and 4095 GEM Ports Optical power detection, Dying Gasp Terminal Silent mechanism 802.3az EEE Energy Conservation |
|
VLAN
|
802.1Q tag VLAN
VLAN transparent mode/VLAN translation mode/VLAN trunk mode Authentication based on SN and Password VLAN Auto Detect |
|
Security
|
AES Encryption ；Packet Filter based on VLAN
|
|
Management
|
Managed by Web, OMCI or OAM and Telnet,
Specified the management IP, Reset to Factory default by Reset button or Web UI, Real-time statistics, Optical Diagnostic |
|
IGMP
|
IGMP v2/v3；IGMP Snooping/Proxy
|
