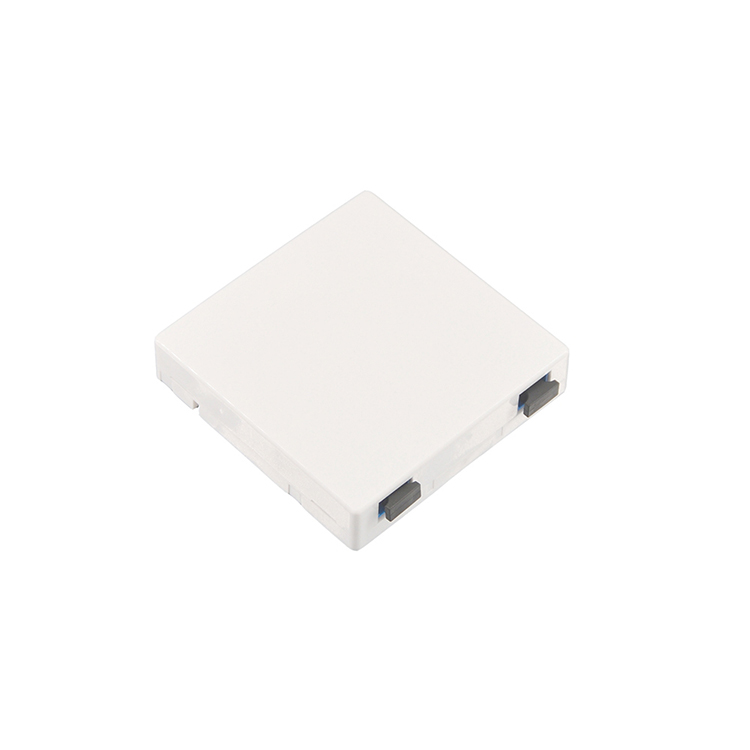

FTTH Fiber Socket Panel FSP05

FTTH fiber socket panel also called ftth fiber optic faceplate,designed to in a wall mount way installing SC, FC, LC fiber optic adapter to fix with pigtails or ftth drop cable. the most popular ftth fiber optic socket panel is 86 type.

Main Features

  •  Radian appearance makes it slinky
  •  Support MM or SM fiber connection

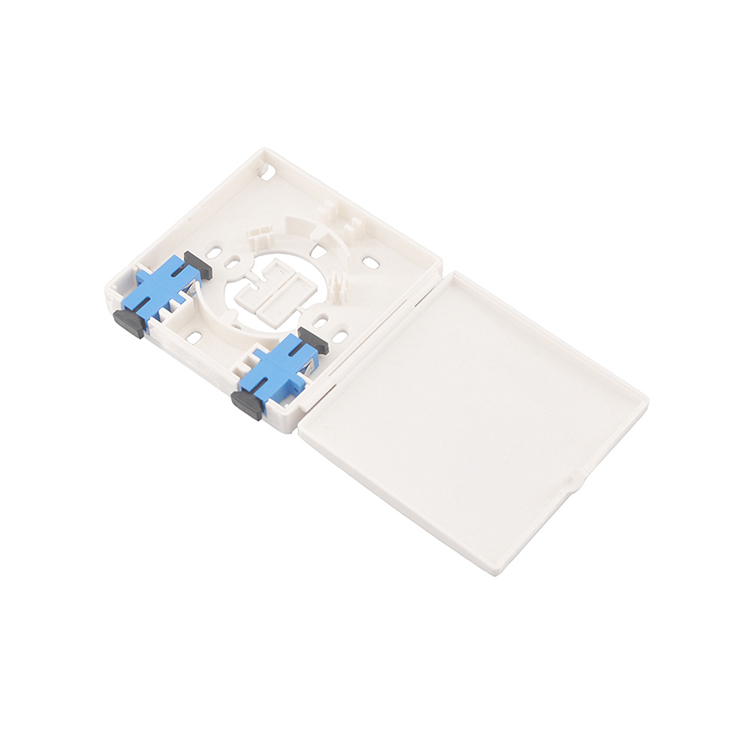

  •  Fiber can be stored in the inner space of the faceplate
  •  Simplified design is easy for installation and maintenance.
  •  Suitable for fusion splice and mechanical splice

CONTACT +

Parameter

Model UT- FSP05
Size 86*86*23mm
Cable Ports 2
Compatiable Adatper SC/FC/LC
Weight 0.05kg/pcs
Package Dimension 500*390*320mm
Gross Weight 14kg/Carton
Qty in Carton 250pcs
