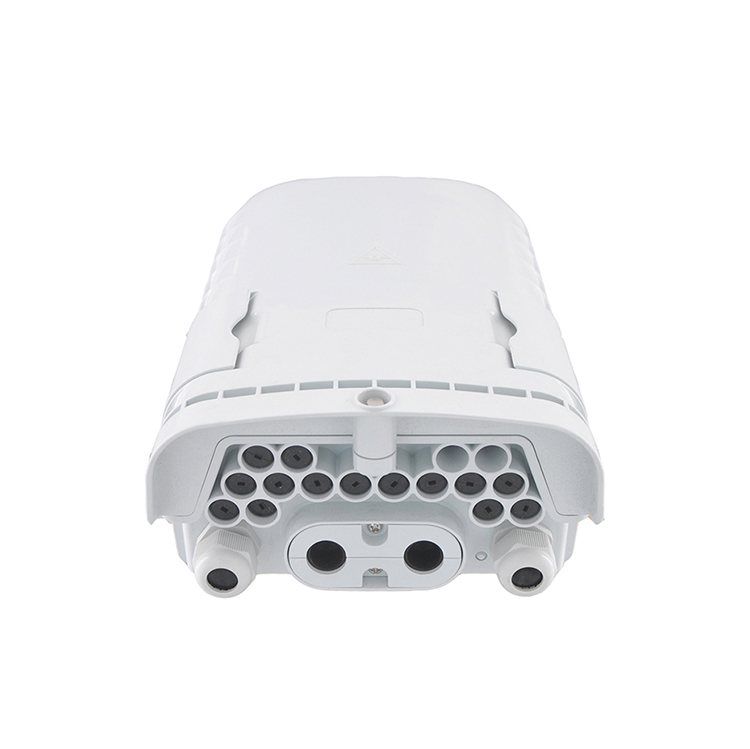

Fiber Access Terminal box FATB416E

UT-King’s fiber access termination Box FATB416E is able to hold up to 16 subscribers and 96 splicing points as closure. it is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Main Features

  •  Water-proof design with IP-65 Protection Level.
  •  Integrated with flap-up splice cassette and adaptor holder
  •  All stainless metal plate and anti-rusting bolts, nuts
  •  Fiber bend radius control more than 40mm
  •  Suitable for the fusion splicer or mechanical splice
  •  1pcs of 1*8 or 1*16 Cassette type PLC splitter can be installed as an option
  •  Mechanical sealing structure and mid-span cable entry.
  •  16 ports cable entrance for drop cable
  •  16 adapter for drop cable patching

CONTACT +

Parameter

Model UT- FATB416E
Size L*W*H(mm) 287*172*102
Protection level IP65
Material ABS+PC
Max splitting 1:16 Mini PLC Splitter
Weight (kg) 1.8
Cable diameter(mm) ≤ 15
Cable inlet/outlet: 4 / 16
Fiber core capacity 16 (single core)
Color Grey/black
Weight 1.15kg/pcs
