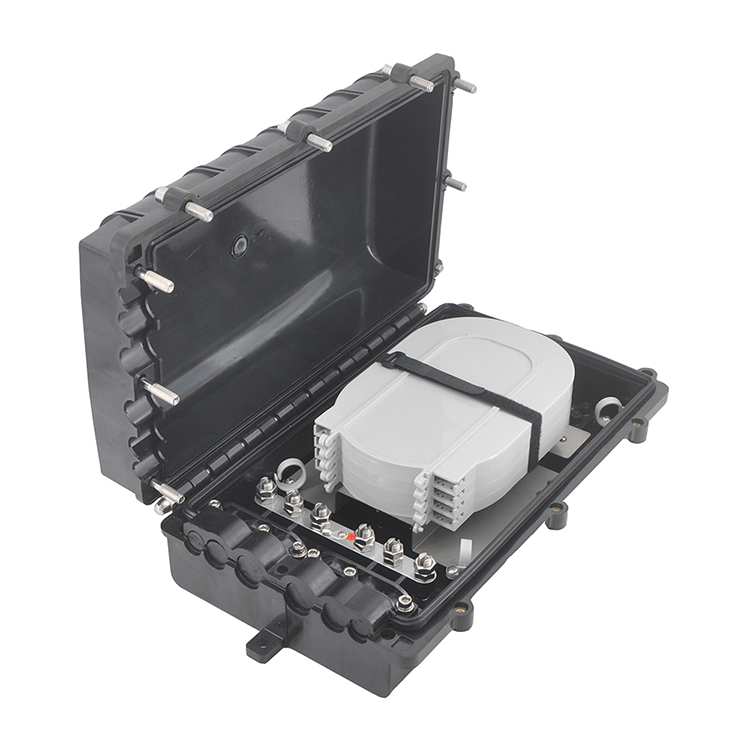

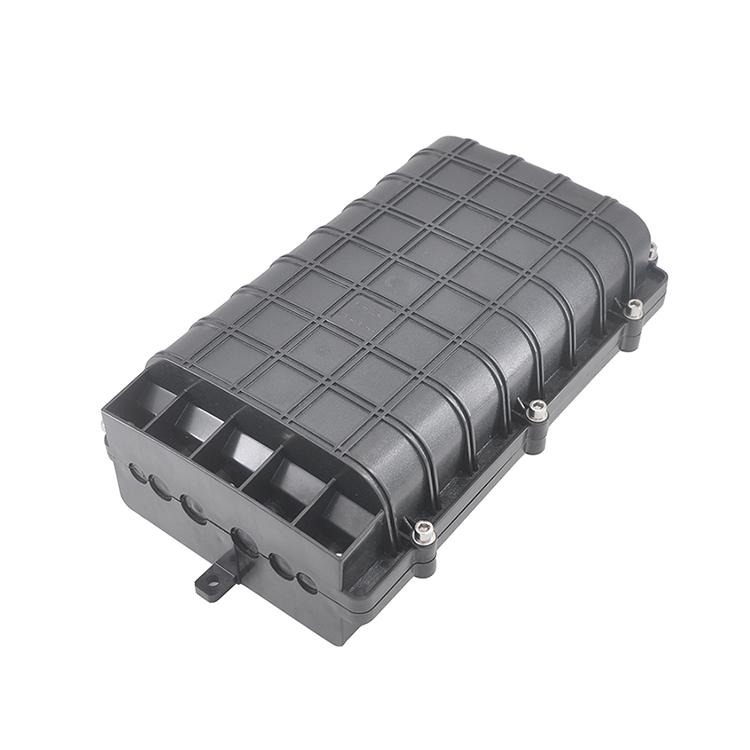

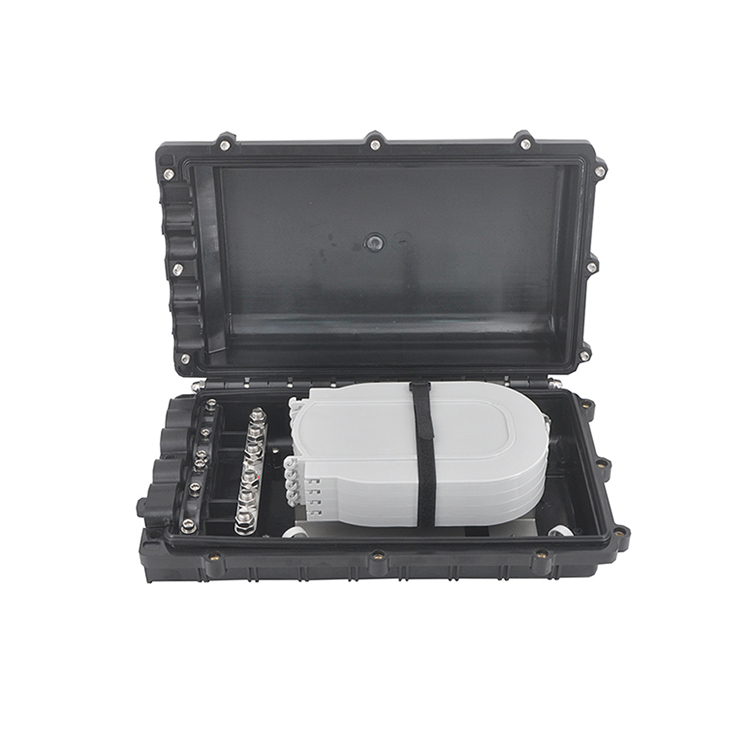

Fiber Splice Closure-GJS-HC03

UT-King’s fiber optic splice closures are used throughout the network, including the fiber trunk, feeder, distribution, and last mile segments. Our closure are normally used to connect optical cables in the long-distance transmission network, closure also routes and branches optical fibers.fiber to the home (FTTH) is a type of point to multiple points (P2MP) network with many branching points, so closures are widely used to implement cable distribution, optical fiber splitting, and flat drop cable output.

Main Features

  •  Widely applied in aerial,direct and branch connection for cables lower than 360 fibers.
  •  suitable for extreme climate,
  •  as it is made from composite engineering plastic filled with sealing material
  •  The inner and fastening pieces are made of stainless steel.
  •  This product can be opened repeatedly after being sealed

CONTACT +

Parameter

Model UT-GJS-HC03
Dimension 355*210*90mm
Material ABS ,PC or PP
Capacity of splice tray 24 single fiber
Max. qty of splice tray 4 pcs
Cable entry ports 6
Diameter of Cable Φ8-Φ20mm
Assemmbling method outdoor aerial hanged, wall mounted
Net Weight 2.2 kg
Outter carton size 580*430*530mm
number of Packing 8 pcs/ctn
weight 20kg /ctn
