UT-GP4486, 100% NEW 4GE+1POTS+wifi(2.4G&5G) GPON ONU

We promise that GP4486 ONU is a 100% NEW ONU without any second-hand parts.

Our aim is to provide partners with more stable and high-quality products!

The best after-sales service is that no customer needs after-sales service.

【Product Feature】

*Support GPON Mode, and switch mode automatically

*Support ONU auto-discovery/Link detection/remote upgrade of software

*WAN connections support Route and Bridge mode

*Route mode supports PPPoE/DHCP/ static IP

*Support WIFI Interface and multiple SSID

*Support QoS and DBA

*Support port Isolation and port vlan configuration

*Support LAN IP and DHCP Server configuration;

*Support Port Forwarding and Loop-Detect

*Support TR069 remote configuration and maintenance

*Support POTS interface for Voip Service

*Specialized design for system breakdown prevention to maintain stable system

CONTACT +

Parameter

Model	Configuration					Fiber interface
	PON	LAN	Telephone	Wifi	CATV
GP4486	1	4	1	2	/	SC UPC
Remarks	Power plug:EU,AU,AM,UK etc
	Noted: with English manual
	Optional: 4GE+1Tel+Wifi 2.4G&5G
Technical item	Specification
PON Interface	1 XPON interface,Downstream rate 2.5Gbps,Upstream rate 1.25Gbps

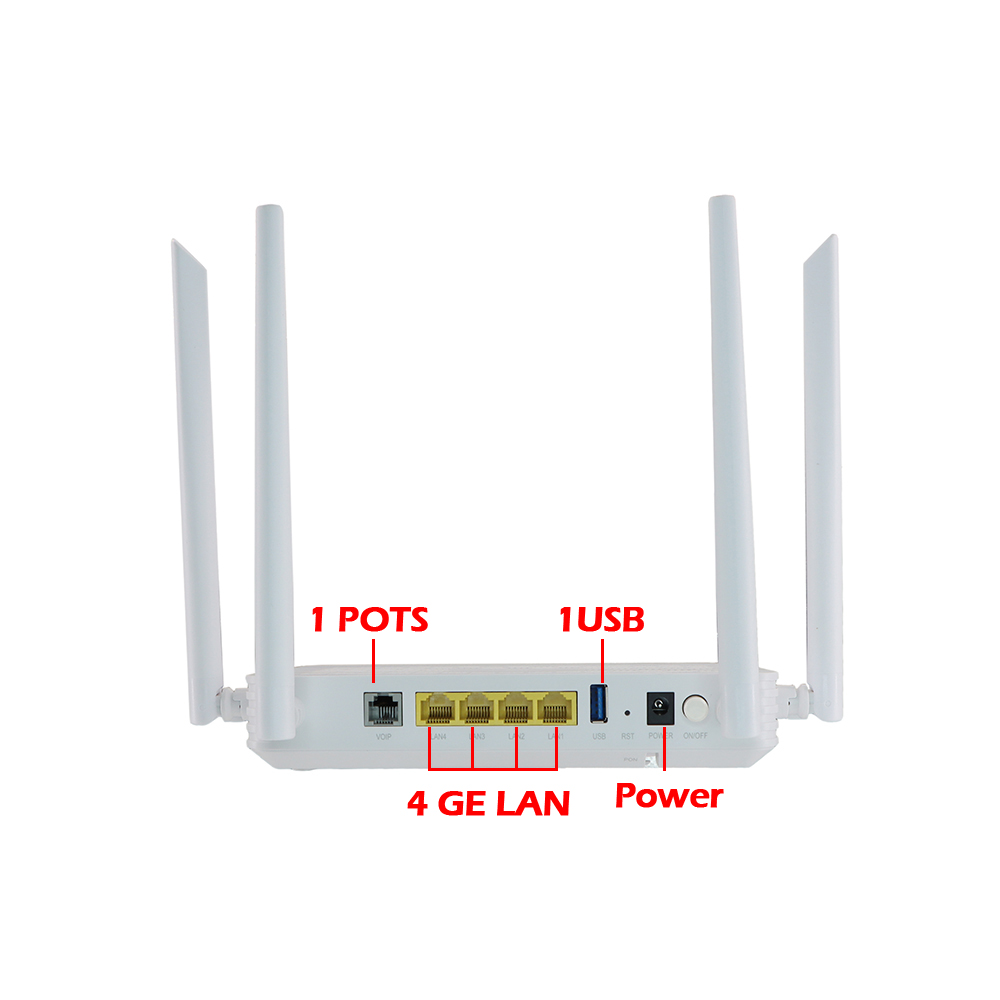

LAN Interface	4x 10/100/1000Mbps(GE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
Chipset	ZTE Chipset（ZAX279128）
WIFI	2 antenna :5dBi
Operation Condition	Working temperature: -5-+55℃ working humidity:10-90%(non-condensation)
Storing Condition	Storage temperature: -30℃-+60℃ storage humidity: 10-90%(non-condensation)
Capability	Support NAT/PPPOE/DHCP/Static IP/Bridge WAN
Wavelength	TX: 1310nm, RX: 1490nm
DC power	12V 1.5A DC input
Dimension	180mm×140mm×20mm（L×W×H）
