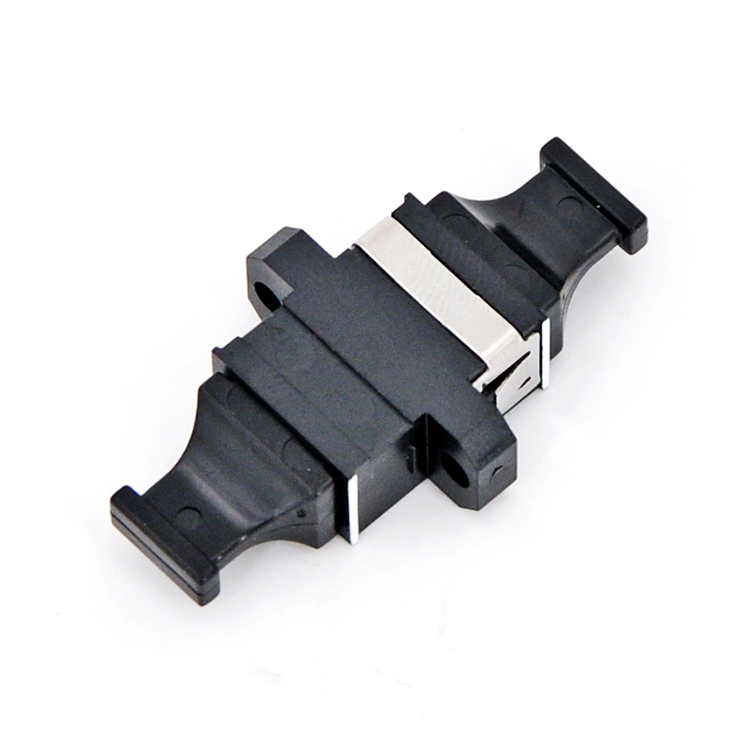

UT-King’s singlemode or multimode MPO products are multifiber connections used in high-density backplane and Printed Circuit Board (PCB) applications in data and telecommunications systems. They offer up to 12 times the density of standard connectors, providing signficant space and cost savings. The MPO Adapter comes standard in black, with additional colors available upon request.
| Parameter | Specification |
| Mating Connector Type | MPO/ MTP |
| Color | Black or Customized |
| Testing Wavelength | 1310nm, 1550nm, 850nm, 1300nm |
| Insertion Loss | Typical ≤0.20dB，Max≤0.30dB |
| Repeatability | ≤0.10dB |
| Exchangeability | ≤0.20dB |
| Durability | 500 Mating，Max≤0.20dB |
| Materail | PC |
| Work Temperatrue | 0℃ ~+70℃ |
| Storage Temperature | -40℃ ~ +85℃ |
