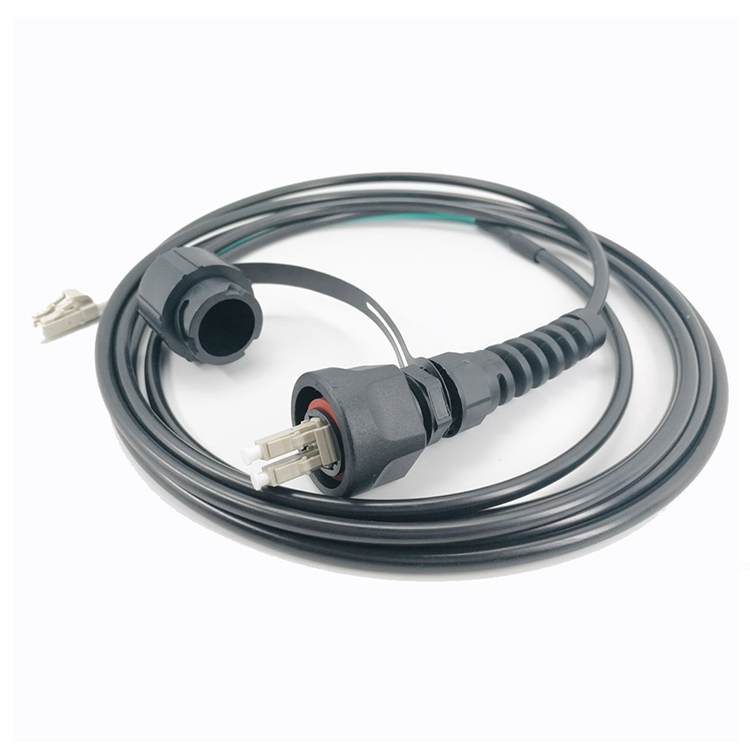

UT-King’s ODVA connectors, together with the support optical cable, are becoming the standard interface specified in 3G, 4G and WiMax Base Station remote radios and Fiber-to-the-Antenna applications. The product however, is not limited to the above applications. The ODVA cable assemblies have passed tests like salt mist, vibration and shock and meet protection class IP68. They are well suited for Industrial and Aerospace and Defense
| Parameters | LC | SC | MPO | |||||||||||
| PC | UPC | APC | APC | UPC | PC | APC | PC | |||||||
| Mode | SM | MM | SM | MM | SM | SM | SM | MM | SM | SM | MM | |||
| Insertion loss (dB) | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | |||
| Return loss (dB) | ≥55 | ≥35 | ≥55 | ≥35 | ≥60 | ≥60 | ≥55 | ≥35 | ≥50 | ≥60 | ≥35 | |||
| Repeatability (dB) | ≤0.1 | |||||||||||||
| Interchangeability(dB) | ≤0.2 | |||||||||||||
| Service life | >500times | |||||||||||||
| Tensile strength | >10kg | |||||||||||||
| Operating Temp(℃) | -30℃ ～+70℃ | -10℃ ～+70℃ | ||||||||||||
| Storage Temp(℃) | -40℃ to +80℃ | |||||||||||||
| Fiber type | Single mode: | 9/125-G652D | 9/125-G655 | 9/125-G657A,G657A2 | 9/125-G657B3 | |
| Multimode: | 50/125-OM2 | 62.5/125-OM1 | 50/125-OM3 | 50/125-OM4 | 50/125-OM5 | |
| Fiber Brand | YOFC, Corning, Sumitomo, Fujikura | |||||
| Connector | Duplex LC, SC ,MPO,MTP | |||||
| Cord type | 2 Cores | |||||
| Cable diameter | 5.0mm 7.0mm | |||||
| Cable jacket | PVC, OFNR, LSZH, Armorde | |||||
| length(M) | 0.5m,1m,2m,5m,10m,25m,50m,100m…Customized | |||||
